6000 Cycle Lithium Battery Storage for Sustainable Energy Supply

Brand Name : GDQ

Model Number : WMB100

Certification : UN38.3 MSDS CE

Place of Origin : China

MOQ : 8 units

Price : consult prices online

Payment Terms : T/T

Packaging Details : consult online

Voltage : 48V / 51.2V

Capacity : 100Ah

Cycle Life : >6000 cycles @ 0.5C, 80% DOD

Operating Temperature : -20°C to 60°C

Communication Method : CANBUS/RS485

Max Discharge Current : 100A

Contact Now

6000 Cycle Lithium Battery Storage for Sustainable Energy Supply

6000 Cycle Lithium Battery Storage for Sustainable Energy Supply

Product Description

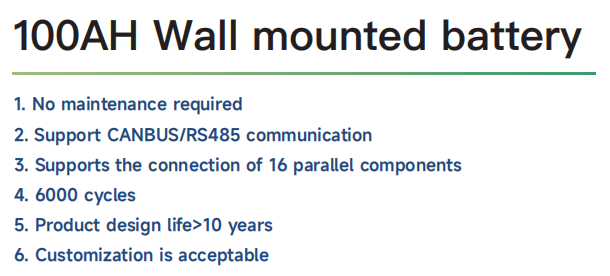

The 100Ah wall-mounted lithium battery provides an efficient and safe energy storage solution for residential and small commercial users. This product requires no maintenance, supports CANBUS/RS485 communication, and allows connection of up to 16 parallel components. With a cycle life of up to 6000 cycles and a product design life of more than 10 years, it is built for long-term use. The battery is equipped with an advanced BMS system, offering comprehensive protection against overcharge, over-discharge, and overcurrent to ensure safe operation.

Electrical Characteristic
Nominal voltage 48V 51.2V
Nominal capacity 100Ah
Nominal energy 4.8KWH 5.12KWH
Internal resistance ≤50m2
Output power(Max) 4.8KW 5.12KW
Self discharge rate ≤3%per month@25℃
Max connection 16pcs in parallel
Cycle life >6000 cycles@0.5c@80%/DOD@25℃
Working temperature -20℃-60%/-4°F-140F
Mechanical characteristic
Battery cell type Prismatic battery cell
Battery cell material Lithium iron phosphate
Battery cell capacity 100Ah
Battery cell layout 15S1P 16SIP
Shell material Iron
Dimension 605*405*200mm
Net weight 45KG/100LBS 47KG/103LBS
Warranty 5years
IP level IP54
ACcessory 1.2m 4AWG positive&negative wire*2pcs
User manual*1pcs,1m RJ45 wire*1pcs
Packaging infomation Quick connect terminal*4(positive*2/Negative*2)
RS485 terminal*2/CANBUS terminal*1
Address dial*1/soc indicator*1
LCD display dashboard*1
Charging&Discharging Characteristic
Standard chargecurrent 50A
Maximum charging current 100A
Charge method CC-CA
Charge cut-offvoltage 54.75V
Standard discharge current 50A
Maximum discharge current 100A
Discharge cut-offvoltage 40.5V
BMS Characteristic
Maximum discharge current 100A(Maximum,default)
Short cuicuit protection Support,recover when re-charge
BMS pre-charge function Supportims-5000ms
Overcurrent protection 110A(Default value)
Overcurrent reaction time 30ms
Overcharge protection 54.75V 58.4V
Overdischarge protection 40.5V 43.2V
Communication method CANBUS/RS485
working temperature
(recommended)		 -20℃-70%/-4F-158F

Application

  • Suitable for home, office, and small commercial energy storage
  • Can be paired with solar systems for self-sufficient energy supply
  • Ideal for emergency backup power and off-grid energy storage systems

Shipping Methods

Supports global air and sea shipping.
